2000 series aluminum alloy plate
is characterized by high hardness, with the highest content of copper element, about 3-5% .
2000 series aluminum rod
belongs to aviation aluminum material, is not often used in conventional industry
Hardness:
first of all, it is directly related to the chemical composition of the alloy, with the highest content of copper, about 3-5%
Secondly,different states also have a greater impact, in terms of the maximum hardness that can be achieved7series>2series>4series>6series>5series>3series>1series。
Strength: is an important factor that must be considered in product design, is the aluminum alloy component as a component of the pressure under the lowest strength of pure aluminum, and 2 and 7 heat treatment alloy degree is the highest, hardness and strength has a certain phase relationship corrosion resistance: corrosion resistance including chemical corrosion, stress corrosion resistance and other properties
generally speaking，1series>5series>3series=6series>2series=7series。

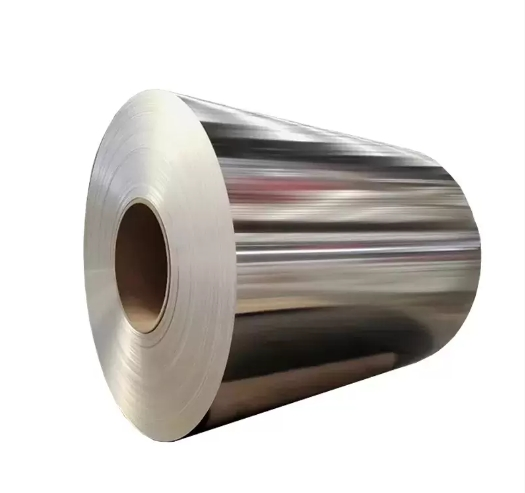

| Product Name | 2000 Series Aluminum Coil |
| Thickness | 0.2mm-6.0mm |
| Application Field | Mainly used in aircraft structure, aerospace, engine and stress components, etc |
| Specification | Alloy | 2017、2024、2A12 |
| State | O、T3、T351、T361、T4、T6、T81 |
| Film type | Blue film, electrostatic blue film transparent film, black and white film, laser film, paper clip, stamping film, stretch film |
| Product Details | 2017 | The 2017 aluminum plate is a typical duralumin in al-Cu-Mg system, with good comprehensive performance and the largest amount of duralumin. |
| 2024 | 2024 product belongs to high strength duralumin, with certain heat resistance, good formability under hot state, annealing and new quenching state, and significant heat treatment strengthening effect, but the heat treatment process is strict. |
| 2A12 | 2A12 aluminum plate products belong to high strength duralumin, which can be strengthened by heat treatment and has good weldability by spot welding. |

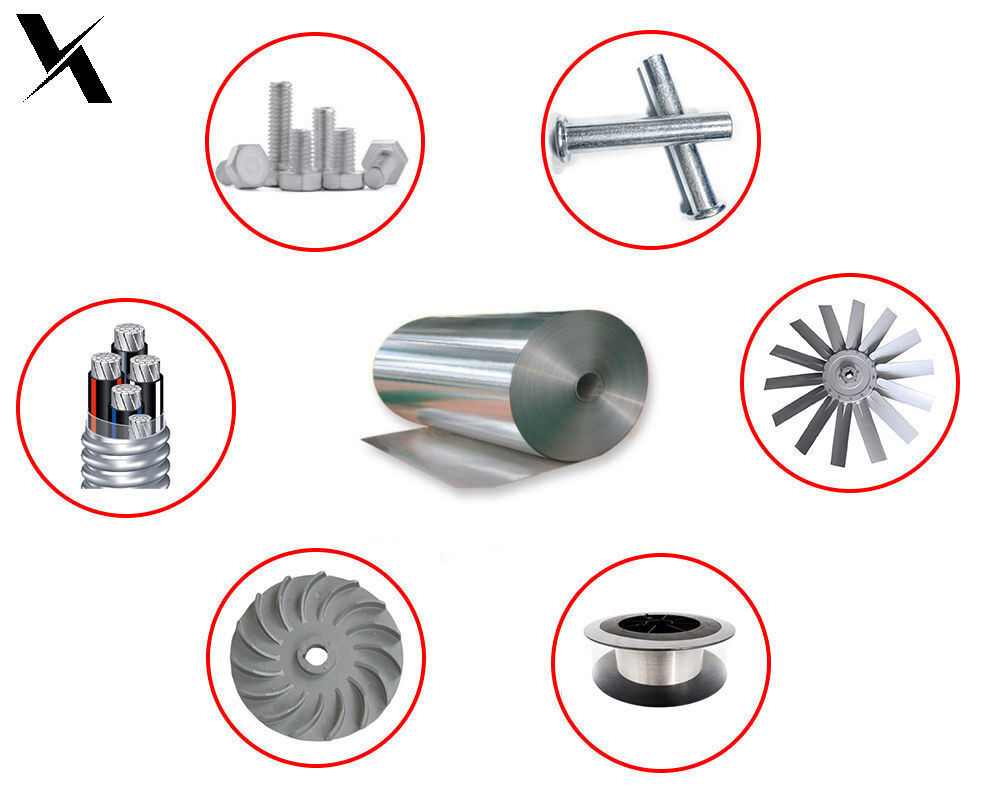

| Product Usage | 2017 | Aluminum plate is usually used in rivets, general machinery parts, aircraft, ships, transportation, building structural parts, transport vehicle structural parts, propeller components and accessories, etc. |
| 2024 | 2024 aluminum plate is widely used in aircraft structure (skin, skeleton, rib beam, frame, etc.), automobile, truck hub, military industry, mold, rivets, missile components, propeller components and other various structural parts. |
| 2A12 | 2A12 aluminum plate is mainly used for machine exterior parts structure (skin, skeleton, rib beam, frame, etc.), wings, molds, military, transportation vehicles, compressors, rivets, missile components, truck wheels, spiral pulp components and other various structural parts. |
